- Construction: GRP
- Length (Feet): 33.73
- Length (Metres): 10.28
- Beam: 3.45 meter
- Min Draft: 1.35 meter
- Max Draft: 1.35 meter
- LOA: 10.28 meter
- LWL: 8.7 meter
- Dry Weight: 4800
- Fuel Capacity: 1 x 150 L (33 Gal)
- Water Capacity: 1 x 200 L (44 Gal)
- Holding Capacity: 1 x 40 L (9 Gal)
- Number of Engines: 1
- Engine Make: Volvo
- Engine Model: MD2020
- Fuel: Diesel
- Type of Propeller: 2 Blade, Aluminum
- Total Power: 18

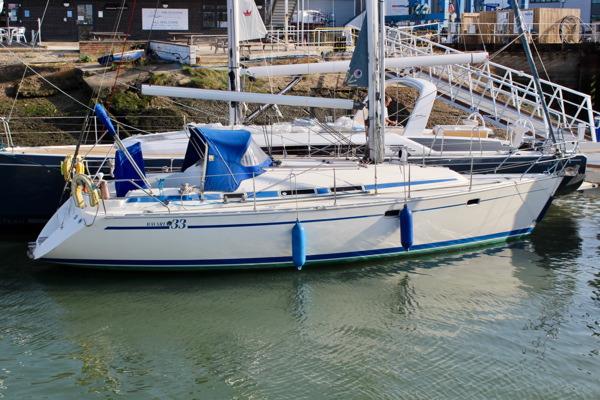

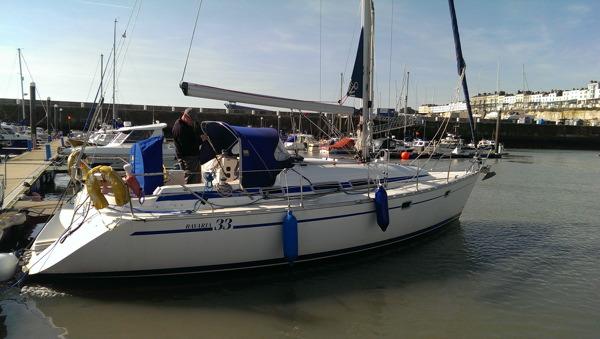

Bavaria 33 Exclusive launched March 1995
Single aft cabin version.
In-mast mainsail furling plus furling headsail makes the 33 an easily handled cruising yacht with a comfortable, spacious interior. Includes cabin heating,radar, electric anchor winch etc.VAT paid, SSR Registered.
Designed by J&J Design and built by Bavaria Yachtbau GMbH

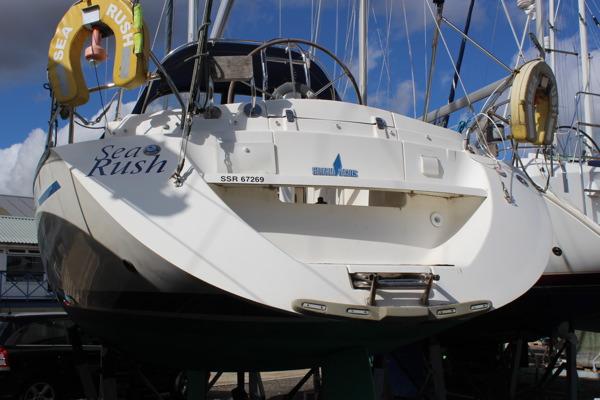

White GRP hull with blue style lines and stern bathing platform

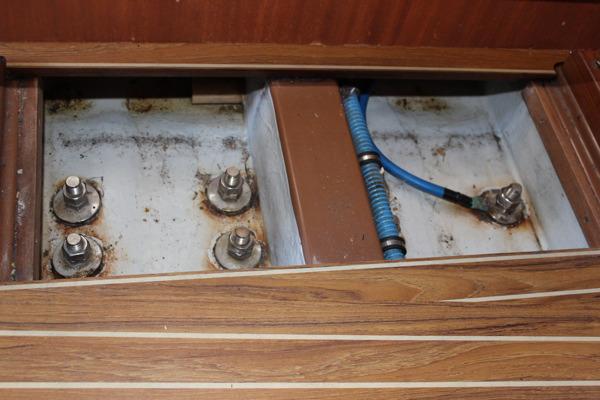

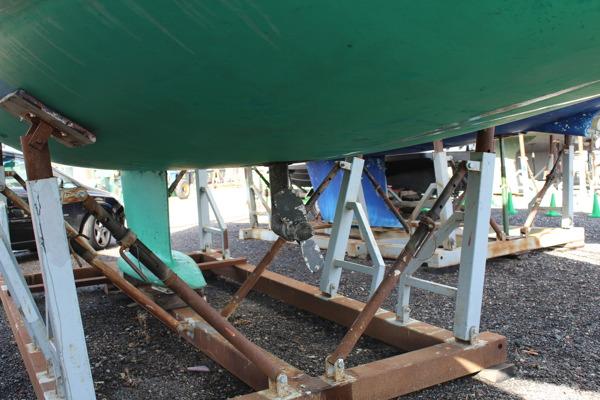

Cast iron shallow fin keel
Semi balanced spade rudder with rod linked wheel steering

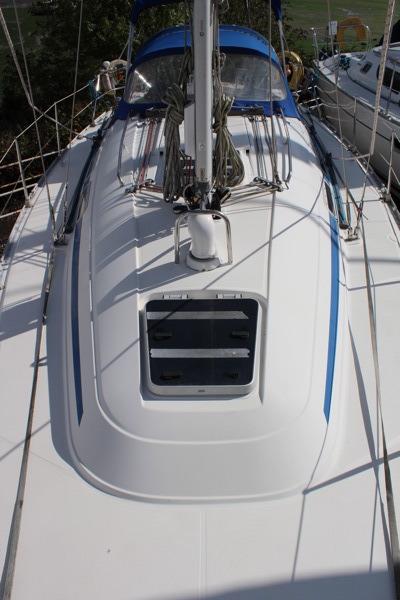

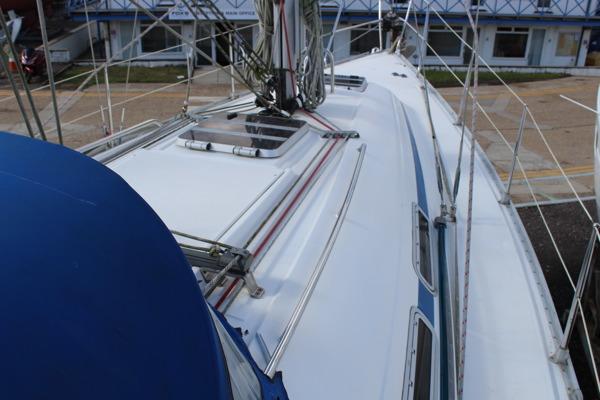

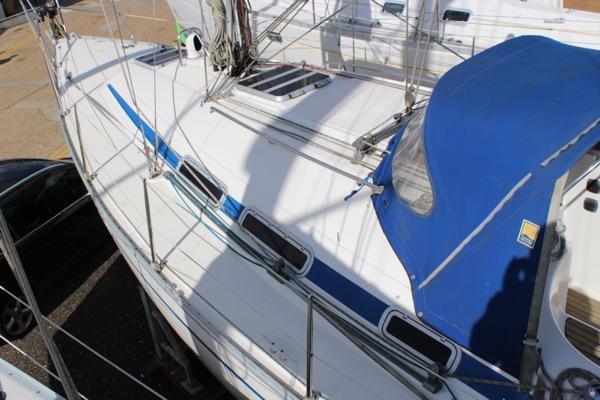

White GRP deck, superstructure and self draining aft cockpit.
Non-slip, moulded deck surfaces.
Teak laid cockpit sole and seats.
Internal GRP moulding with varnished mahogany internal joinery.
Teak and holly laminate sole boards.

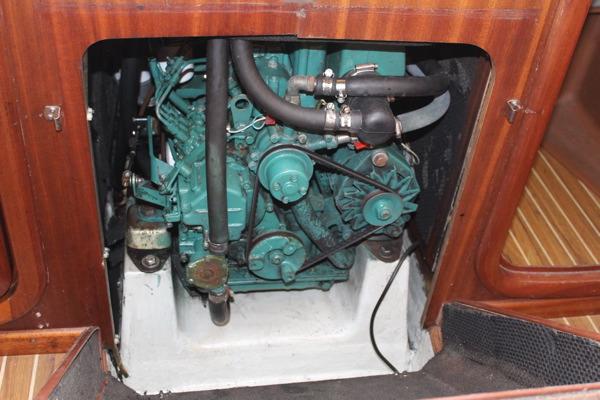

Volvo MD2020 18HP three cylinder diesel engine, Flex’ mounts
Freshwater cooled with heat exchanger & wet exhaust.
Volvo SailDrive reversing reduction gearbox – gaiter replaced 2013

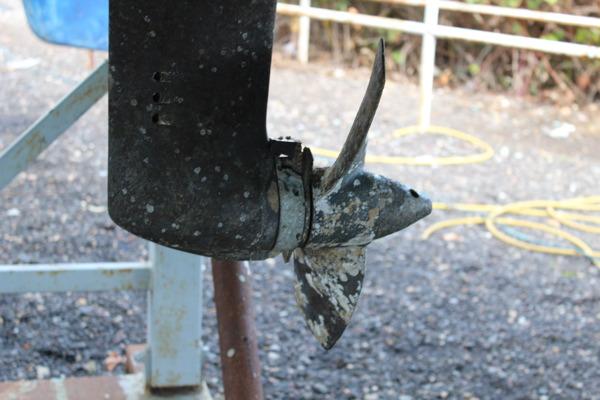

Fixed two bladed propeller with fitted rope cutter
Electric start & single lever controls on pedestal.
Cruising speed reported as 5 knots – max 7 knots.
Fuel: 150 litres in one tank.
Freshwater: 200 litres in one tank.
Holding tank: 40 litre tank.
Hot water tank heated by engine - (240v immersion heater not working).
12 volt system – 1 x 80ah engine & 2 x 120ah domestic batteries
Charging by engine alternator or marine battery charger. Charge monitor
12v interior lighting.
Bow, stern, steaming, deck and anchor navigation lights
240 volt system – 240v shore power system with shore cable, outlets below, marine battery charger – new 2017.
Spars and Rigging
9/10ths Fractional sloop rig. In-mast Mainsail Furling.

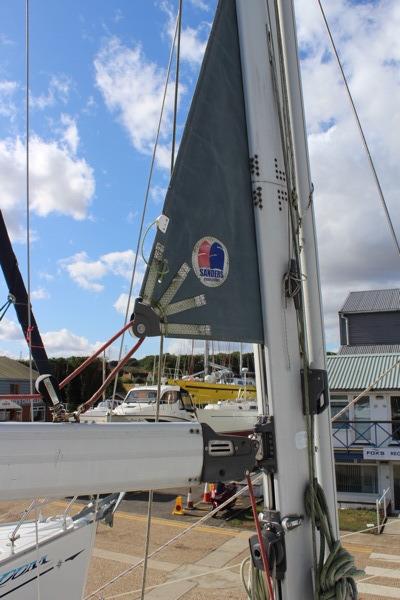

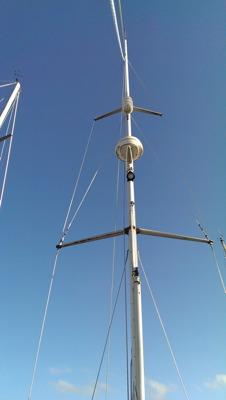

Selden alloy fractional double spreader furling mast & boom.
1 x 19 s/steel wire standing rigging (replaced 2007).Backstay adjuster.

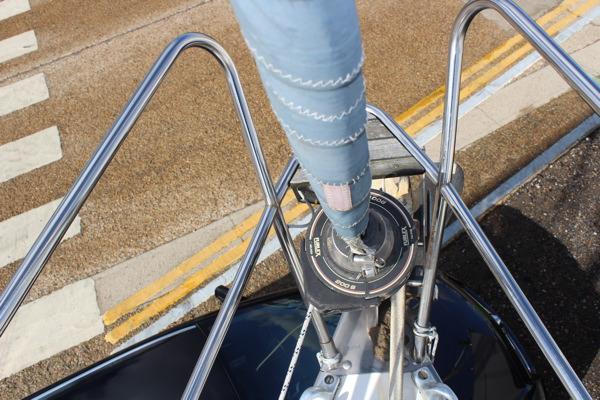

Furlex 200S headsail furling system.
Mast stowed spinnaker ploe.

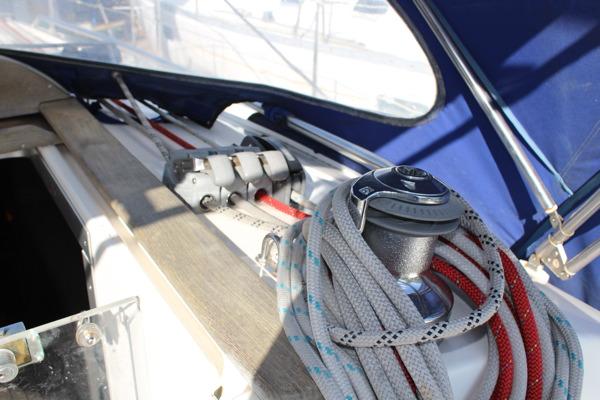

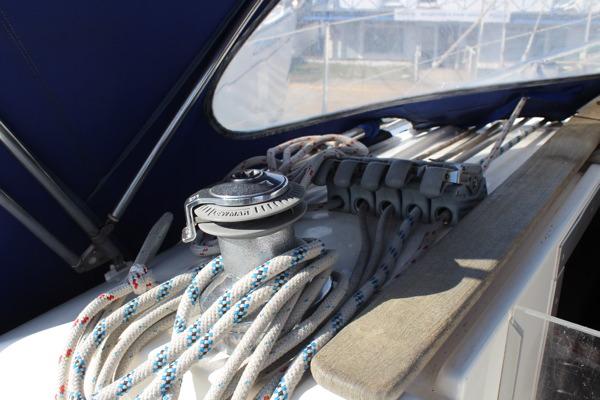

Terylene running rigging controls led to Rutgersen cockpit clutches.
Lewmar mainsheet track forward of companionway. Lewmar Genoa tracks.
2 x Lewmar 40 ST Genoa winches
2 x Lewmar 30 ST Halyard winches
Furling Mainsail 24.8 sq.m – Sanders Sails
Furling Genoa with blue sacrificial strip 32.7 sq.m
In Cockpit at helm –
Suunto binnacle helmsman’s compass.
Raymarine ST50 GPS display
Raymarine ST50 windspeed/direction
2 x Raymarine MN 100.2 Wireless multi displays (speed, depth, wind) – new 2018
Raymarine ST4000 wheelpilot

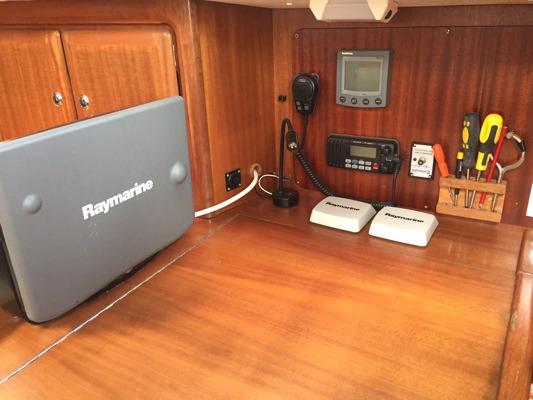

At chart table -
Icom M421 DSC VHF Radio with cockpit speaker
Raymarine C120 combined GPS plotter and radar (wired for pedestal mount)
Raymarine ST60 multi display.

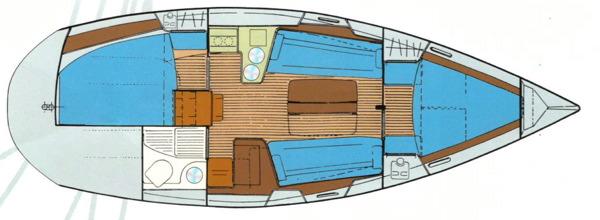

6 Berth “Owners Layout"
Varnished mahogany internal woodwork and laminate floorboards.
Pale blue/green upholstery
Eberspacher diesel fired hot air heating system.
Pressurised hot & cold water system (heated by engine)
2 opening deck hatches, 7 opening ports, 4 opening hull ports.

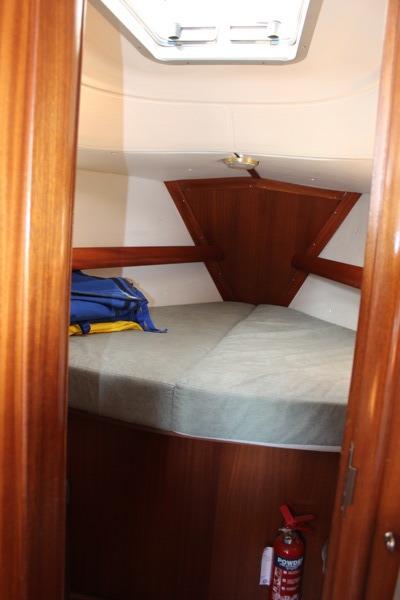

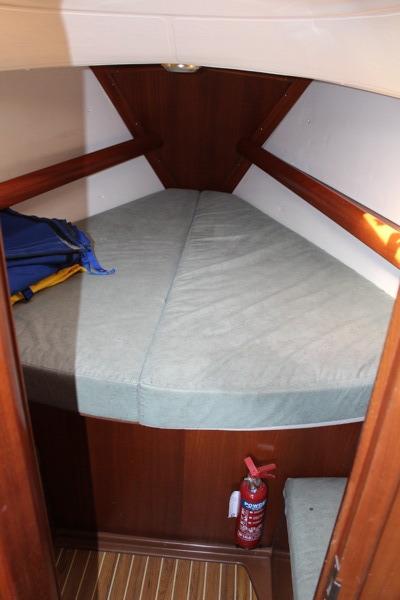

Forecabin - large cabin with V berth, stowage lockers above and two hanging lockers. Seat with storage below. Door to-

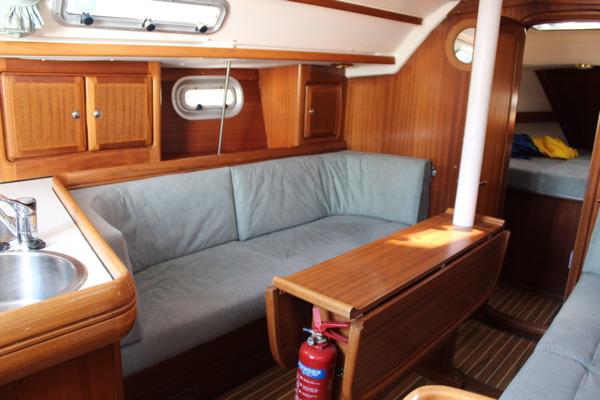

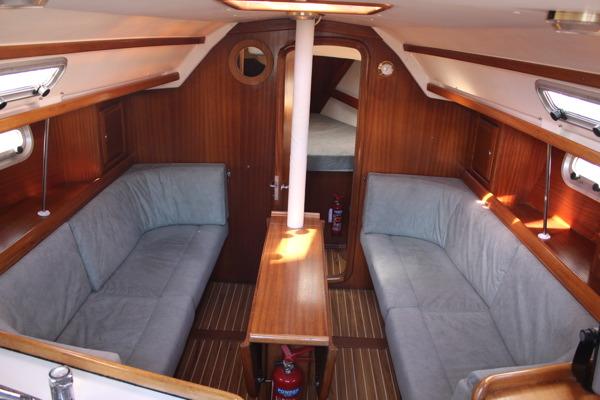

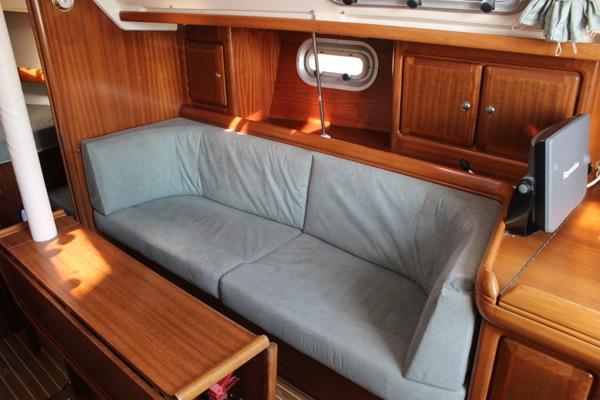

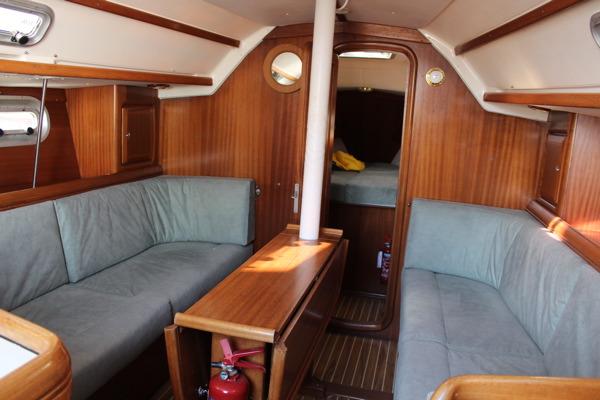

Saloon with settee berths (backs lift up to give wide berth) to p&s with storage lockers above, large midships drop leaf table.

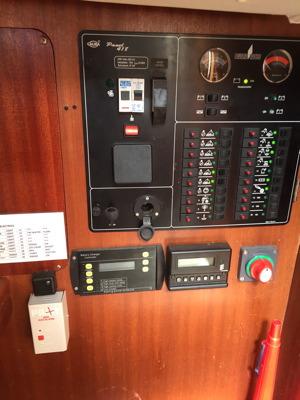

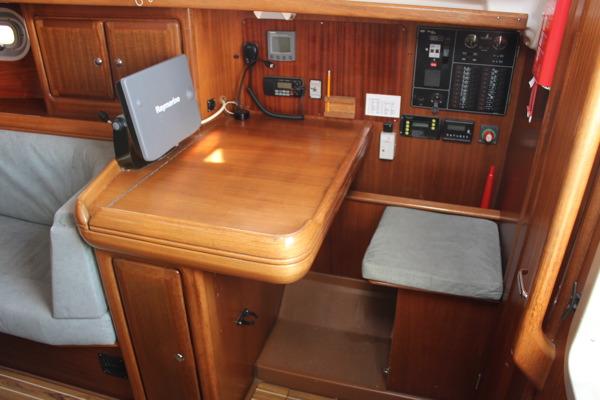

Chart table good sized to stbd with chart stowage, vinyl covered navigator’s seat, switch panel & instruments.

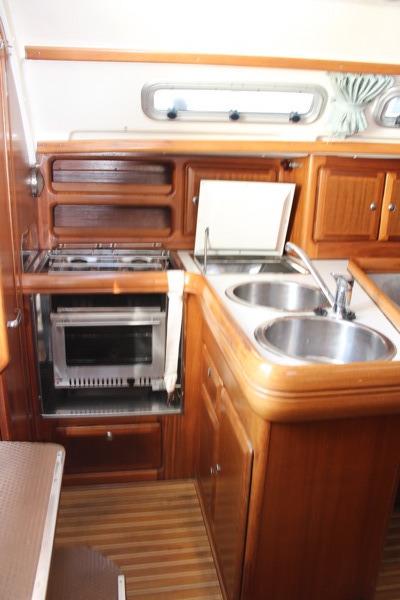

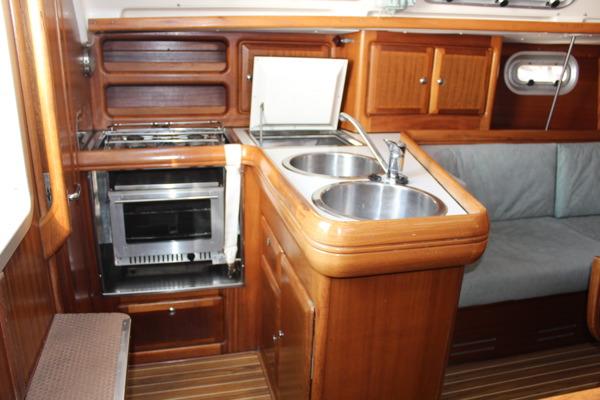

Galley to port - gimballed Plastimo Nepture 2500 s/s two burner gas cooker with oven and grill, 2 x s/steel sinks, h&c pressure water, top opening cool box with 12v fridge unit and good stowage.

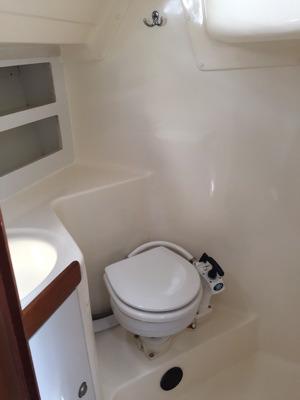

Heads aft to sbtd with Jabsco sea toilet piped to holding tank. Wash basin, h&c pressure water and storage.

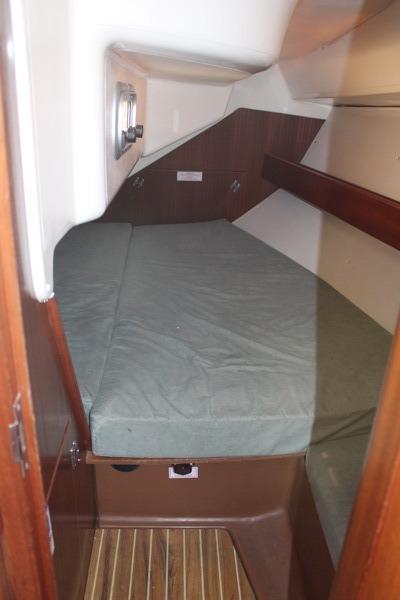

Aft cabin with good size double berth, hanging and stowage lockers. Engine compartment under companionway steps with good access.
S/s open pulpit with teak seat/step,
Split pushpit, stanchions & PVC covered guardwires
Single bow roller
Lofrans Donado 12v 700w electric anchor winch
Plough anchor and 30m chain plus warp, draining anchor locker
Alloy toe rail, 6 x mooring cleats
Stainless Steel coachroof grab handles

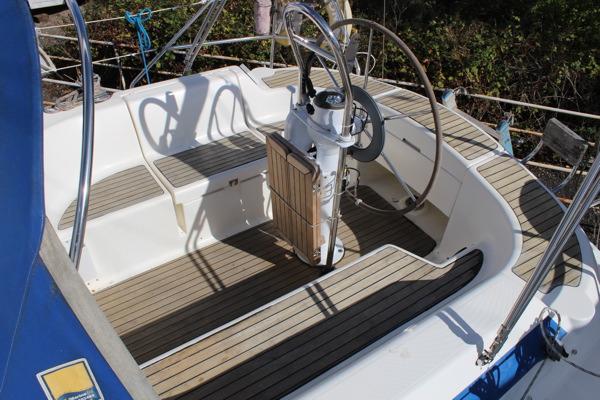

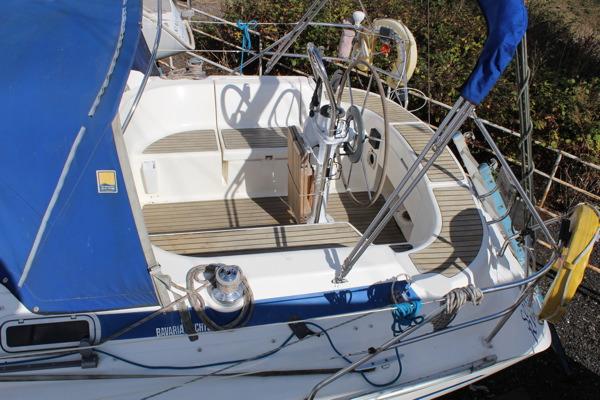

Self draining aft cockpit, deep cave locker to stbd and gas locker aft

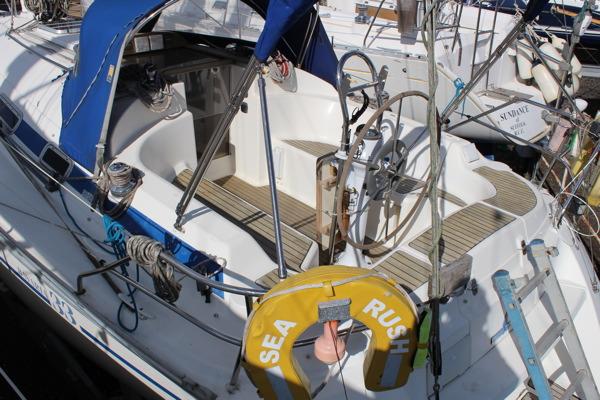

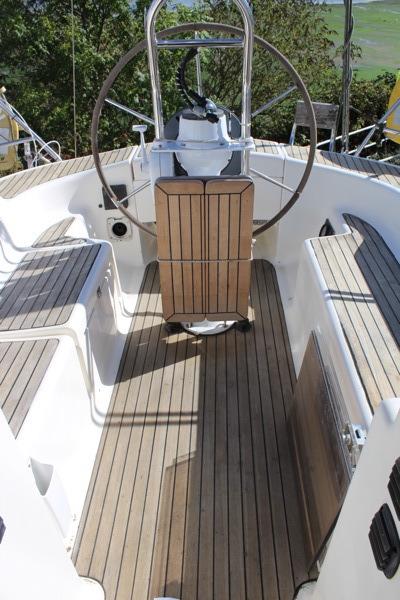

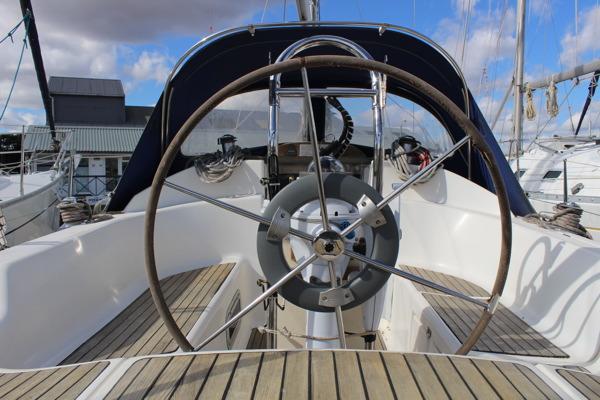

Lewmar pedestal steering with leather covered wheel
Teak folding cockpit table
Stern mounted folding swimming ladder

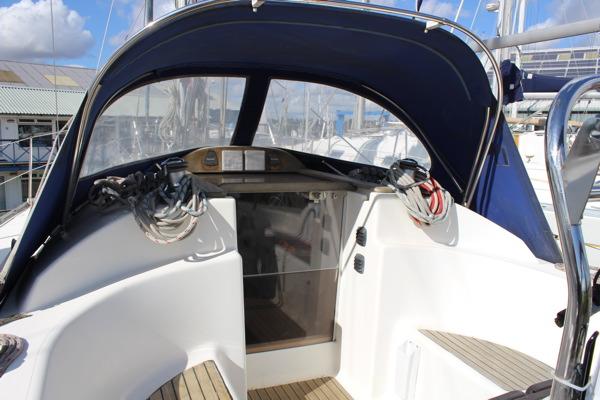

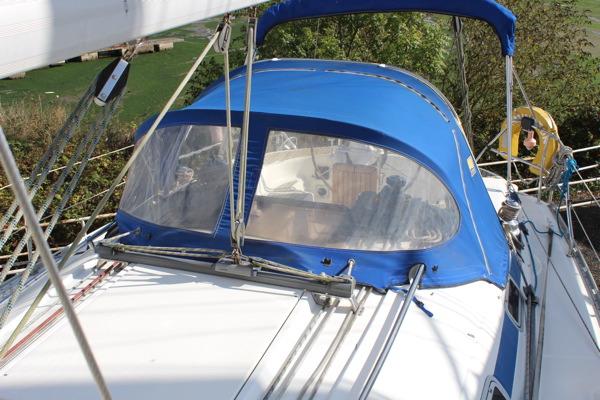

Blue folding sprayhood with s/s grab handle
Blue cockpit enclosure tent on s/s frame
Blue wheel & pedestal cover
Teak laid cockpit seats & sole
Winch handle pocket – 2 winch handles
Mooring warps & fenders
Manual bibilge pump
3 x Dry Powder fire extinguishers and blanket
Pilot Mini gas alarm
Manual fog horn
2 x Horseshoe lifebuoys with lights
Throwing line. Side deck webbing jackstays
Firdell Blipper radar reflector. Cockpit harness attachment points
